Williams DieselJet 505 | Deck Refit Estimate

Example deck refit estimate using synthetic teak decking (DIY sheets vs ready-to-install panels) for Williams DieselJet 505 Tender based on boat deck design, layout dimensions and measurements.

Reference project showing real material quantities and indicative prices for DIY synthetic teak installation.

Estimate Summary*

The estimate provides a deck refit cost overwiew using Isoteak DIY sheets and ready-to-install panel for all RIB deck areas based on deck design, layout, dimensions and measurements.

The estimate includes:

Isoteak Pro Deck synthetic teak sheets for cutting panels yourself using a your boat deck templates.
Sealant adhesive for installation

For price comparison purposes, we also provide an approximate estimate for a set of panels manufactured according to your templates.

* Based on measured deck layout plan shown below.

This calculation is for informational purposes only. Before ordering, be sure to check the exact dimensions of your boat!

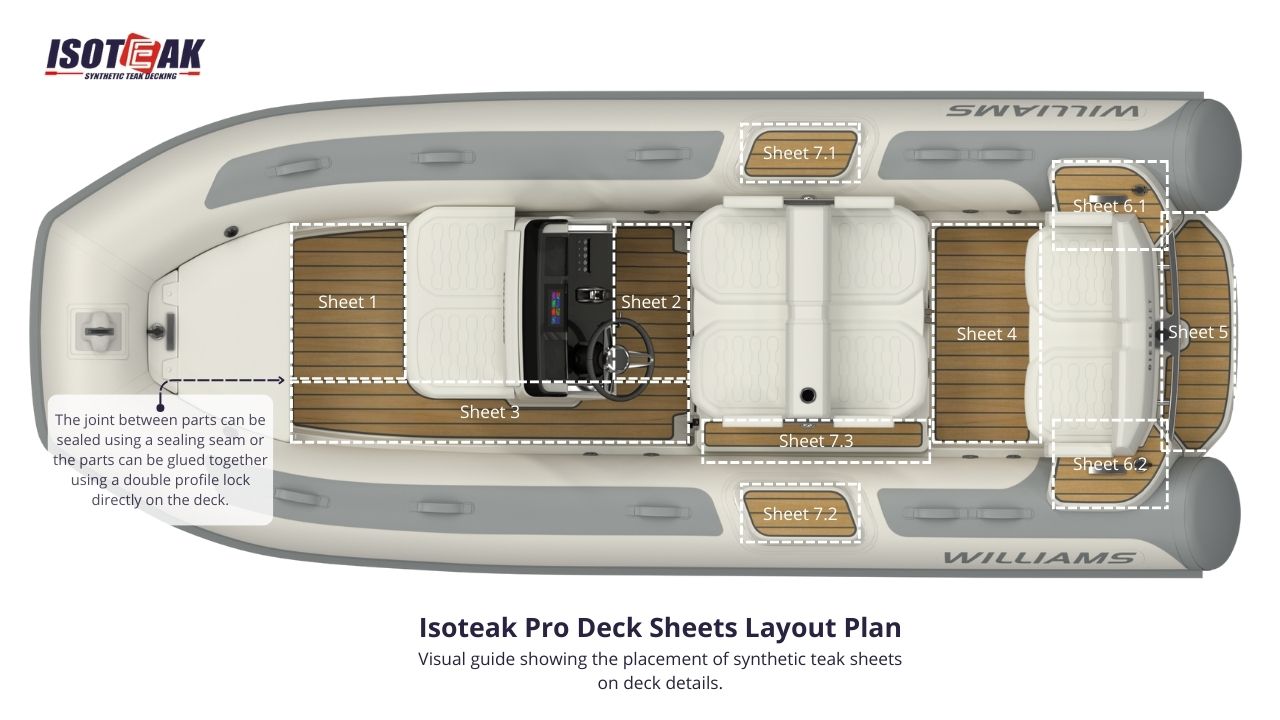

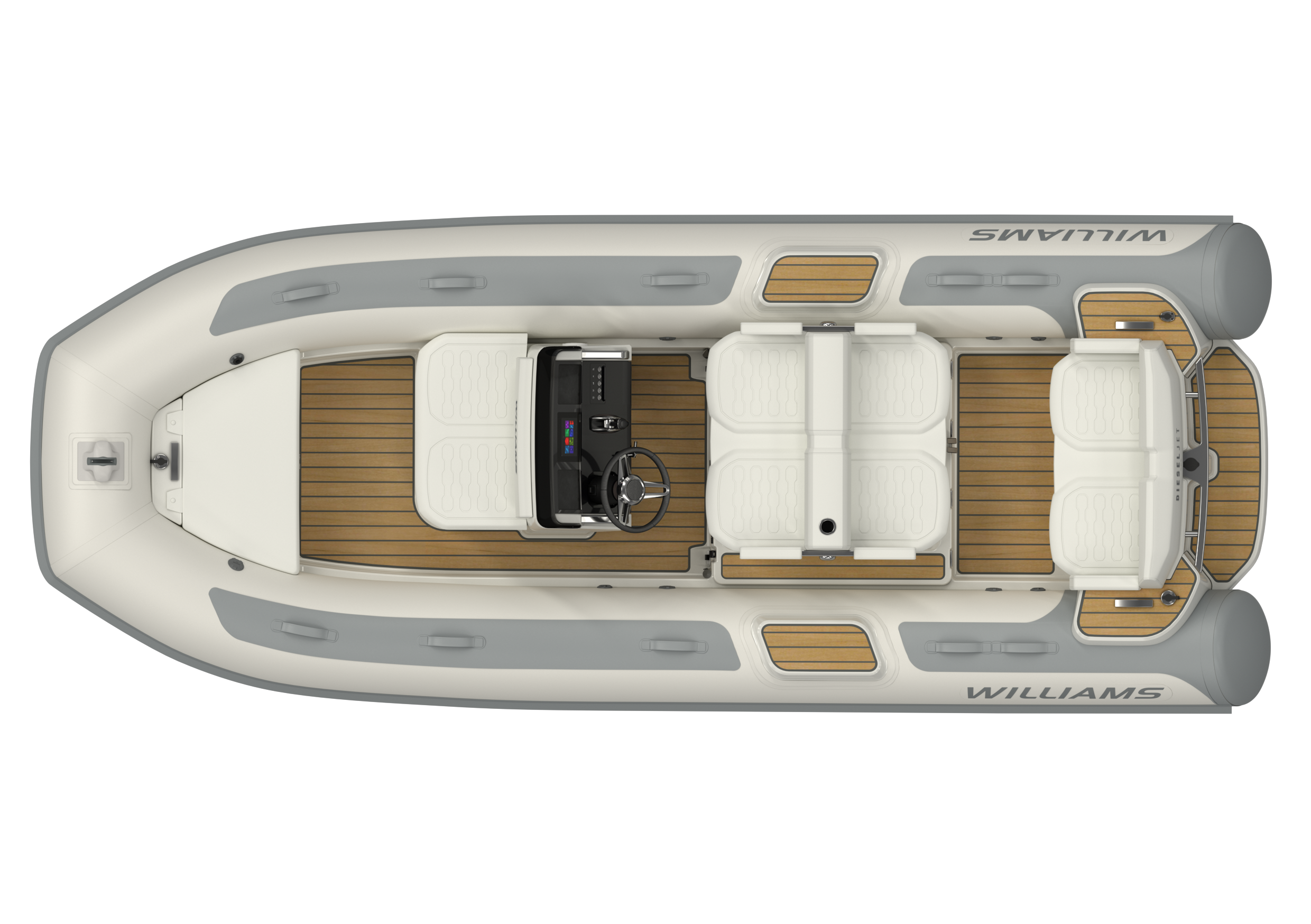

Layout Plan and Deck Design:

Model Parameters

Boat class	RIB • Up to 6 m (≤ 20 ft)
Model	Williams DieselJet 505 Tender
Length	16,5 ft / 5,0 m
Beam	2,01 m

Covered Deck Area

Total

2,56 m²

Sheets specification

* Links open the exact sheet size in the shop

Pre-welded Isoteak Pro Deck sheets.

Custom size sheet 75×50 cm, 1 pc
Custom size sheet 75×35 cm, 1 pc
Custom size sheet 30×170 cm, 1 pc
Custom size sheet 90×45 cm, 1 pc
Custom size sheet 105×33 cm, 1 pc
Custom size sheet 75×50 cm, 1 pc
Custom size sheet 45×100 cm, 1 pc

Sealant adhesive needed

* Estimated consumption for full covered area (2,56 m²) using typical installation practice.

Cartridges 290 ml	8 pcs
or Tubes 600 ml	4 pcs

Estimated Cost (ex. VAT)

Option	Price
Isoteak DIY sheets for cutting yourself	521 € / set
Panels by template (no frame)	700 € / set
Panels by template (framed)	1 300 € / set
+ Sealant Adhesives for Installation	+ 72 €

Assumptions

Prices exclude VAT and shipping.
Exact quote depends on templates and geometry.
Areas are approximate and shown for reference. Before ordering, be sure to check the exact dimensions of your boat!
